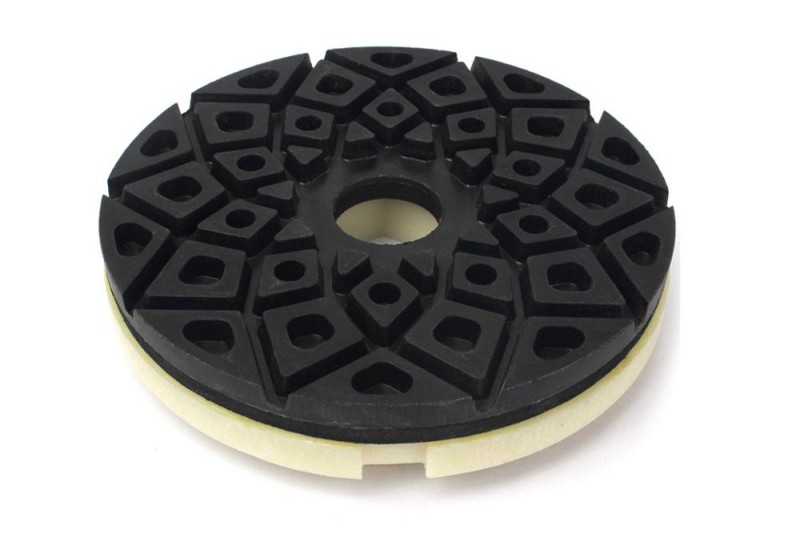

What Are Resin Bond Edge Polishing Pads?

Resin bond edge polishing pads are special grinding tools designed for stone processing, especially for grinding and shaping the edges of various stones. These polishing pads use resin as the core bond and add diamond abrasive particles to improve cutting efficiency. The manufacturing process usually adopts cold pressing or hot pressing to produce efficient and durable wheel-shaped polishing pads.

Composition and Design

The main component of resin bond edge polishing pads is resin, which acts as a binder for the diamond particles. This combination makes the polishing pad both flexible and strong, able to adapt to the contours of the stone being processed. Diamond particles are known for their hardness and cutting ability, which significantly enhances the performance of the polishing pad, allowing it to grind and polish the stone surface with precision.

Advantages of Resin Bond Edge Polishing Pads

1. Improve efficiency: Resin bond edge polishing pads are designed to improve stone processing efficiency. Compared with traditional grinding tools, diamond abrasives have superior cutting force, which can remove material faster and obtain smoother surfaces.

2. Surface finish accuracy: These polishing pads represent a significant breakthrough in surface finish accuracy. The flexibility of the resin bond allows the polishing pad to conform to the stone surface, resulting in a more even finish and less chance of scratches or blemishes.

3. Environmentally friendly: Unlike some traditional grinding methods that may require water or other coolants, resin bond edge polishing pads can operate effectively without these substances. This not only reduces environmental pollution, but also minimizes waste disposal issues associated with the use of coolants.

4. Versatile: Resin bond edge polishing pads are suitable for a variety of hard materials and are ideal for a variety of stone working applications. Whether it is granite, marble or other types of stone, these polishing pads provide consistent results.

5. Ideal replacement for metal grinding wheels: With the continuous development of the stone processing industry, resin bond edge polishing pads have gradually become the first choice to replace traditional metal edge grinding wheels. Its unique performance advantages, including reduced noise and vibration, make it more user-friendly and efficient.

Types and Uses

Importance in stone processing

The primary use of resin edge grinding wheels is to smooth the edges of stone, which tend to become rough and uneven after the initial cut. Using these pads, operators can achieve a polished edge that is not only aesthetically pleasing but also improves the overall durability of the stone. For applications where the stone will be visible, such as countertops, flooring, and decorative elements, the smoothness achieved through this process is essential.

In addition to edge polishing, resin edge grinding wheels are versatile and can be used for automated grinding and polishing of irregular surfaces. This includes the complex patterns, curves and steps commonly found in a variety of natural and artificial stones. The adaptability of these grinding pads makes them highly valuable in both commercial and residential stone work.

Specifications and dimensions

Resin edge grinding wheels are typically available in 5" and 6" sizes to suit a wide range of grinders. Working layer thickness is typically between 5 and 10mm, allowing for efficient material removal whilst maintaining control over the polishing process. These pads are often fitted with a snail-back connection for easy installation onto the grinder.

Resin edge grinding wheels are available in a wide range of grit sizes, from 50 to 3000. This wide range of grits allows users to select the right grit for their specific polishing needs. Coarse grit (lower grit) is suitable for initial grinding and material removal, while fine grit (higher grit) is used to achieve a high gloss finish.

Supplementary tools

When using a resin edged wheel, it is often used in conjunction with a metal edged wheel for rough grinding. This combination allows for more efficient polishing, as the metal wheel can quickly remove larger imperfections before the resin pad is used to smooth the surface. This two-step operation not only ensures a polished edge for the stone, but also ensures that it is structurally sound.

Performance Characteristics

1. Excellent finishing effect

One of the highlights of resin-edge grinding wheels is their excellent dressing effect. By combining high-temperature resistant resin with diamond abrasives, these grinding wheels are effective in polishing and finishing. The self-sharpening nature of resin grinding wheels causes the abrasive particles to break down into smaller pieces during use, thereby continuously exposing new cutting edges. This process ensures that the grinding wheel maintains stable processing efficiency throughout its service life.

In addition, the elastic cushioning effect of resin polishing pads helps prevent over-abrasion, especially for mirror polishing of brittle materials such as marble and quartz. These polishing pads can achieve surface roughness of Ra 0.2 μm or less, making them ideal for applications where perfect polishing is required.

2. Good flexibility

The resin edged grinding wheel is designed with flexibility in mind, making it suitable for complex polishing surfaces. This feature is particularly useful when working with bevelled edges and curved surfaces such as countertops. Its ability to adapt to a variety of shapes and contours makes the polishing process more comprehensive and efficient, ensuring that all areas of the stone are treated evenly.

3. Long service life

Another major advantage of resin bond edge polishing pads is their long service life. These polishing pads have extremely high grinding sharpness and durability, thanks to the optimization of abrasive concentration (usually controlled in the range of 15% to 25%) and the careful selection of diamond particle size (ranging from 80# to 3000#). As a result, the service life of a single resin bond grinding wheel can reach 120 to 150 hours, significantly reducing the total cost by up to 40% compared to traditional tools.

This long life makes the resin edge grinding wheels particularly suitable for automated grinding and polishing of a wide range of natural and artificial stone surfaces, including lines, curves, steps and other irregular shapes.

4. Wide applicability

Resin bond edge polishing pads are versatile and compatible with a wide range of grinding equipment. They can be used with double-sided grinders, straight edge grinders, and four-sided grinders, making them a valuable addition to any stone processing workshop. This wide range of applicability ensures that manufacturers can use these polishing pads on different processes and equipment, thereby improving the efficiency of their operations.

Application Scenarios

1. Stone countertop processing

One of the main applications for resin bond edge grinding wheels is in the processing of stone countertops. During the countertop production process, the edges often require meticulous grinding. Resin edge grinding wheels excel at removing burrs and uneven parts from the edges of stone panels, ensuring that the final product is not only beautiful in appearance, but also structurally strong. The smoothness and flatness achieved using these wheels significantly improves the overall quality of the countertop, making them a top choice for manufacturers.

2. Automatic grinding and polishing

In addition to manual polishing, resin-bonded edge grinding wheels are also well suited for automated grinding and polishing processes. They are able to effectively process a wide range of natural and artificial stones, including those with irregular surfaces such as lines, curves and steps. This versatility enables manufacturers to meet diverse processing needs and meet a variety of design specifications and customer requirements.

Using resin edge grinding wheels in automated systems, such as automatic wire edge polishers, can streamline the polishing process and increase productivity while maintaining consistent quality. This is especially beneficial in high-volume production environments where efficiency and precision are critical.

3. Complex surface treatment

Resin-bonded edge polishing pads are also ideal for handling complex polishing surfaces. Their flexibility allows them to conform to a variety of shapes and contours, making them ideal for beveled edges and curved surfaces. This feature is especially important in applications that require intricate designs, such as decorative stone or custom countertops.

4. Factory stone processing

The main application area for resin-bonded edge grinding wheels is in stone processing plants. These plants often require tools that can withstand harsh use and achieve high-quality processing. Resin-edge grinding wheels are designed to meet these needs, not only for long service life but also for high grinding sharpness. Resin-edge grinding wheels are compatible with a wide range of machines, including double-sided grinders, straight-edge grinders, and four-sided grinders, which further enhances their practicality in a factory environment.

In Conclusion

In summary, resin bond edge polishing pads are widely used in the stone processing industry, especially in stone countertop manufacturing and automated grinding processes. Their ability to effectively remove burrs and uneven edges, their flexibility, and their compatibility with a wide range of machines make them an indispensable tool for stone processors. By using resin edge grinding wheels, manufacturers can ensure high-quality surface treatment, higher processing efficiency, and meet diverse customer needs in the competitive stone market.
